30-Unit P5 Outdoor LED Billboard Project in Asia

1. Project Overview

To upgrade its urban outdoor media network and establish a reliable 24/7 DOOH (Digital Out-of-Home) advertising platform, a local media company in Asia launched a large-scale outdoor LED display upgrade project.

CNLC supplied 30 units of P5 Outdoor LED Billboards with customized floor-standing structures. Each display measures 7.5m × 1.92m, making the solution suitable for major urban roads, commercial districts, and large-format outdoor advertising applications.

The displays feature 7000cd/㎡ high brightness, ≥7680Hz refresh rate, IP65 outdoor protection, and a dual-layer sun visor design. These features help maintain clear daytime visibility while delivering smooth dynamic content and reliable performance for long-term outdoor operation.

The completed LED display network supports commercial advertising, public information broadcasting, city promotion, cultural and tourism communication, and large-scale event content.

2. Project Challenges

① Maintaining Clear Visibility Under Strong Sunlight

Outdoor LED displays deployed in regions with strong sunlight are exposed to intense ambient light, UV radiation, and surface reflections.

Under these conditions, conventional displays may experience reduced contrast, washed-out images, and poor visibility from long viewing distances.

The project therefore required a high-brightness outdoor LED display solution capable of maintaining clear and vivid advertising content during daytime operation.

②Reliable Performance in Challenging Outdoor Conditions

The displays are installed in open outdoor environments and are expected to operate continuously under conditions such as high temperatures, heavy rainfall, humidity, and dust.

The solution required reliable outdoor protection, effective structural and thermal design, and stable performance during long-term operation while helping reduce maintenance requirements.

③ High-Quality Dynamic Content for DOOH Advertising

As part of a commercial DOOH advertising network, the displays need to continuously play brand advertisements, promotional videos, event content, and other dynamic media.

High refresh rate, stable color reproduction, and consistency across multiple display locations are therefore essential for maintaining professional commercial image quality.

④ Supporting Both Commercial and Public Communication

The customer needed a flexible outdoor LED display network capable of serving both commercial and public communication purposes.

In addition to daily advertising campaigns, the displays can support city promotion, cultural activities, public information, festivals, and special events.

This required a display solution that combines reliable operation, consistent image quality, and strong outdoor adaptability.

3. Product Specifications

• Product Type: P5 Outdoor LED Billboard
• Pixel Pitch: P5 mm
• Individual Display Size: 7.5m × 1.92m
• Resolution: ≥7680Hz
• Brightness: 7000cd/㎡
• Project Quantity: 30 Units

4. CNLC Solution Advantages

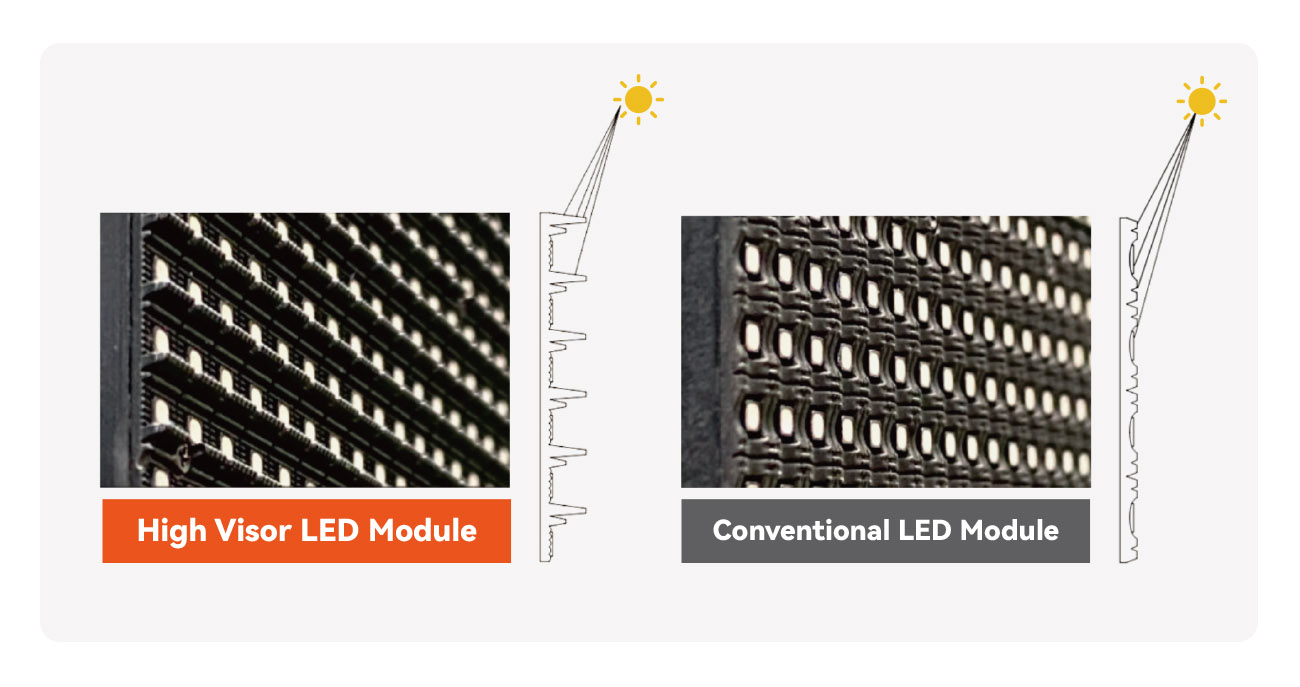

① 7000-Nit High Brightness and Dual-Layer Sun Visor for Outdoor Visibility

The P5 Outdoor LED Billboard features 7000cd/㎡ high brightness, providing strong visibility for outdoor advertising in bright daytime conditions.The customized dual-layer sun visor helps reduce direct sunlight and ambient reflections on the LED display surface, improving perceived contrast and visual clarity.The visor structure also helps limit direct exposure to rainwater, providing an additional layer of protection for long-term outdoor operation.Together, the high-brightness display and sun protection design provide a more reliable visual experience for outdoor DOOH advertising throughout the day.

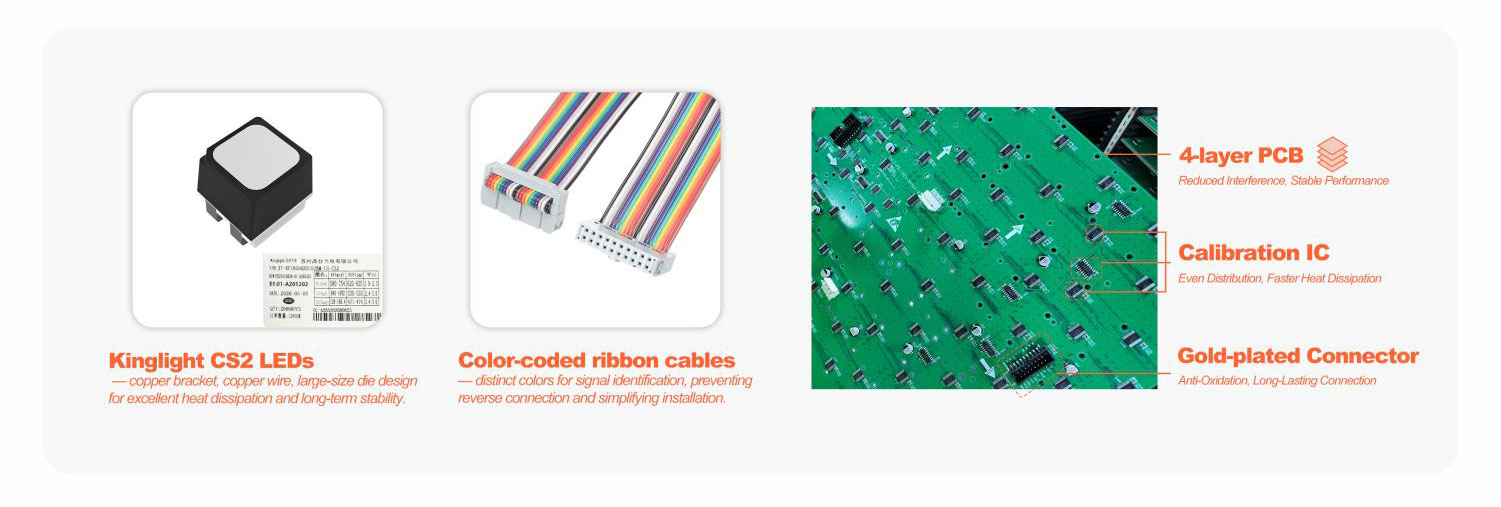

② ≥7680Hz Refresh Rate and P5 LED Module for Smooth DOOH Content

To meet the visual requirements of professional DOOH applications, the display uses a high-performance P5 SMD LED module equipped with Kinglight CS2 LED chips.The module is combined with optimized PCB design and reliable driving components to support stable display performance and consistent image reproduction.With a ≥7680Hz refresh rate, the LED display delivers smooth playback for advertising videos, dynamic content, and event broadcasts while helping reduce visible flicker when the screen is captured on camera.Professional color calibration and batch adjustment further help maintain consistent brightness and color performance across multiple display locations.

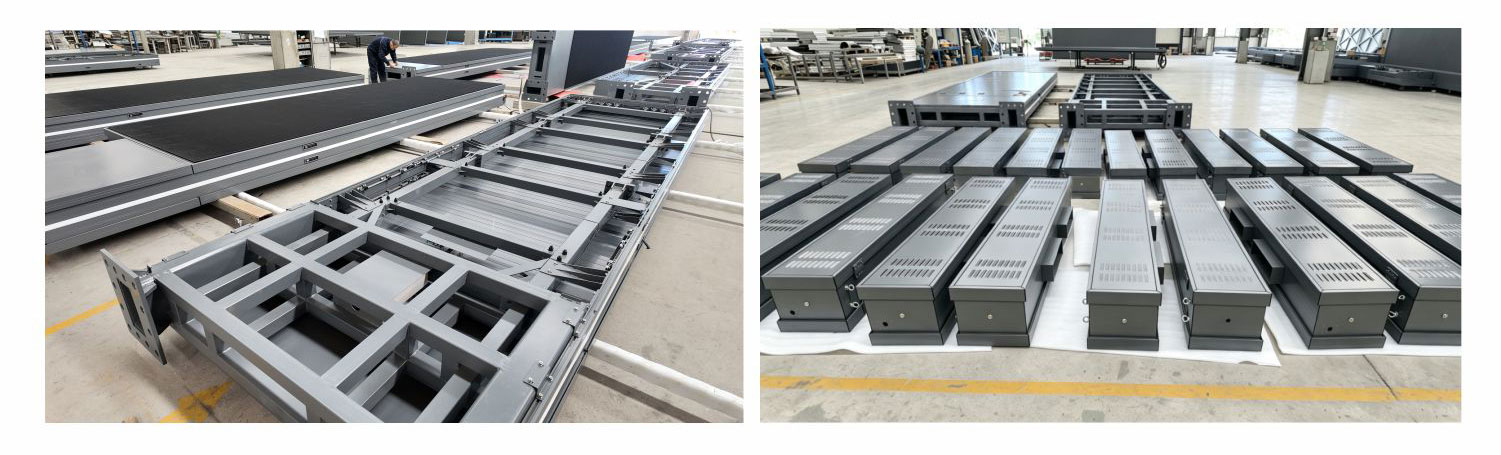

③ High-Strength Aluminum Structure and IP65 Protection for Long-Term Outdoor Deployment

Designed for permanent outdoor installation, the LED Billboard uses a high-strength aluminum alloy structure that provides strong rigidity and reliable structural performance.

The optimized enclosure, sealing, and thermal design support stable operation during continuous use while improving the display's adaptability to outdoor conditions.

With IP65 outdoor protection, the system is designed to withstand exposure to rain, dust, heat, and humidity, providing a reliable hardware foundation for long-term commercial operation.

④ Smart Features and Customized Exterior Design

In addition to its core display performance, the project supports several customized features designed to enhance the overall urban media experience.

Integrated Intelligent Camera

An integrated camera can be configured according to project requirements for equipment monitoring and intelligent management.

Side Ambient Lighting

Side lighting enhances the visual recognition of the display at night and contributes to a more distinctive appearance in urban commercial environments.

Optimized Connection and Cable Design

Optimized connection and cable arrangements support reliable signal transmission while making maintenance and servicing more convenient.

These customized features combine functional performance with a distinctive appearance for large-format outdoor digital signage.

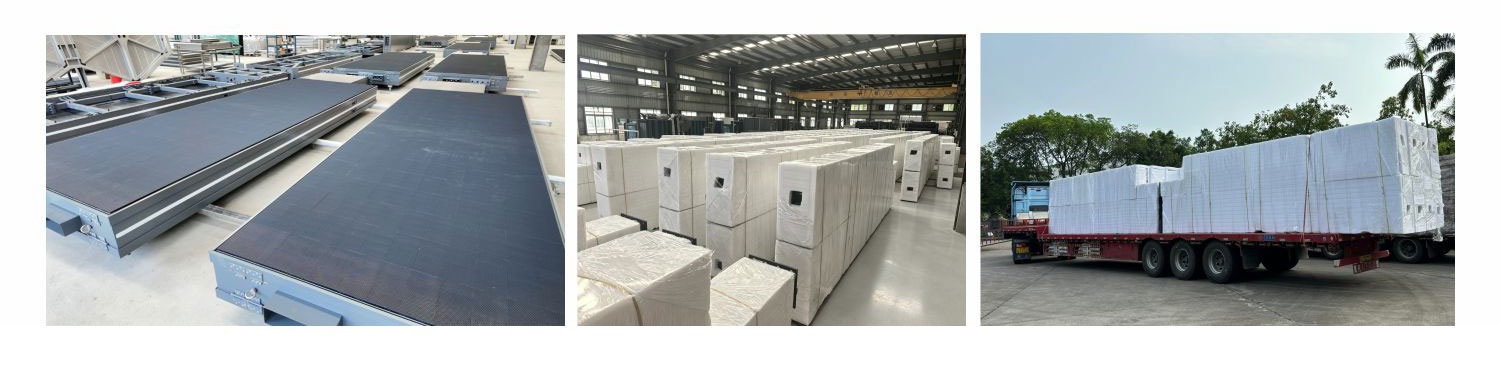

5. Project Delivery and Results

For this 30-unit outdoor LED display project, CNLC provided an integrated service covering product design, manufacturing, quality control, delivery, and technical support.

The project service included:

• Customized LED display design

• P5 LED module production

• Cabinet and structural manufacturing

• Batch quality inspection

• Logistics and product delivery

• Technical support

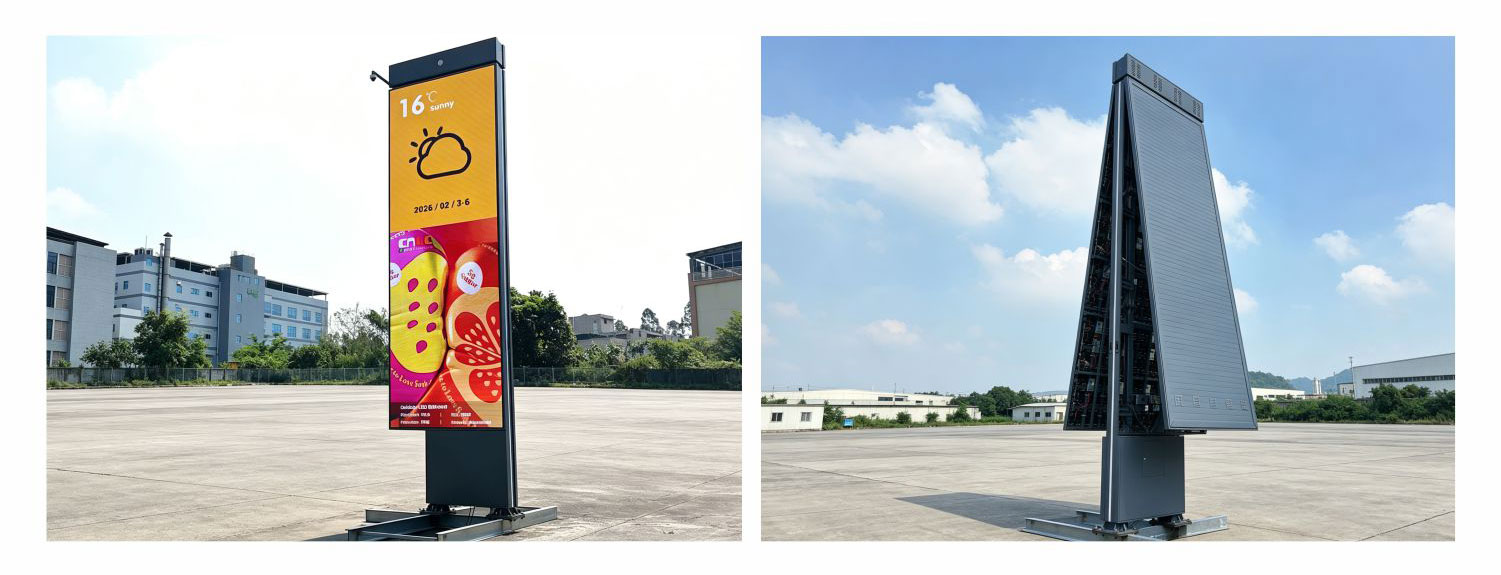

All 30 units of P5 Outdoor LED Billboards were successfully manufactured, delivered, installed, and commissioned, completing the project's large-scale deployment.

After installation, the displays provide stable outdoor operation with:

• Clear visibility under strong daytime light

• Smooth playback of dynamic advertising content

• Consistent brightness and color performance across multiple locations

• IP65 protection for long-term outdoor deployment

• Structural and maintenance design optimized for commercial operation

The completed system provides the customer with a reliable outdoor digital advertising network for both commercial media and urban public communication.

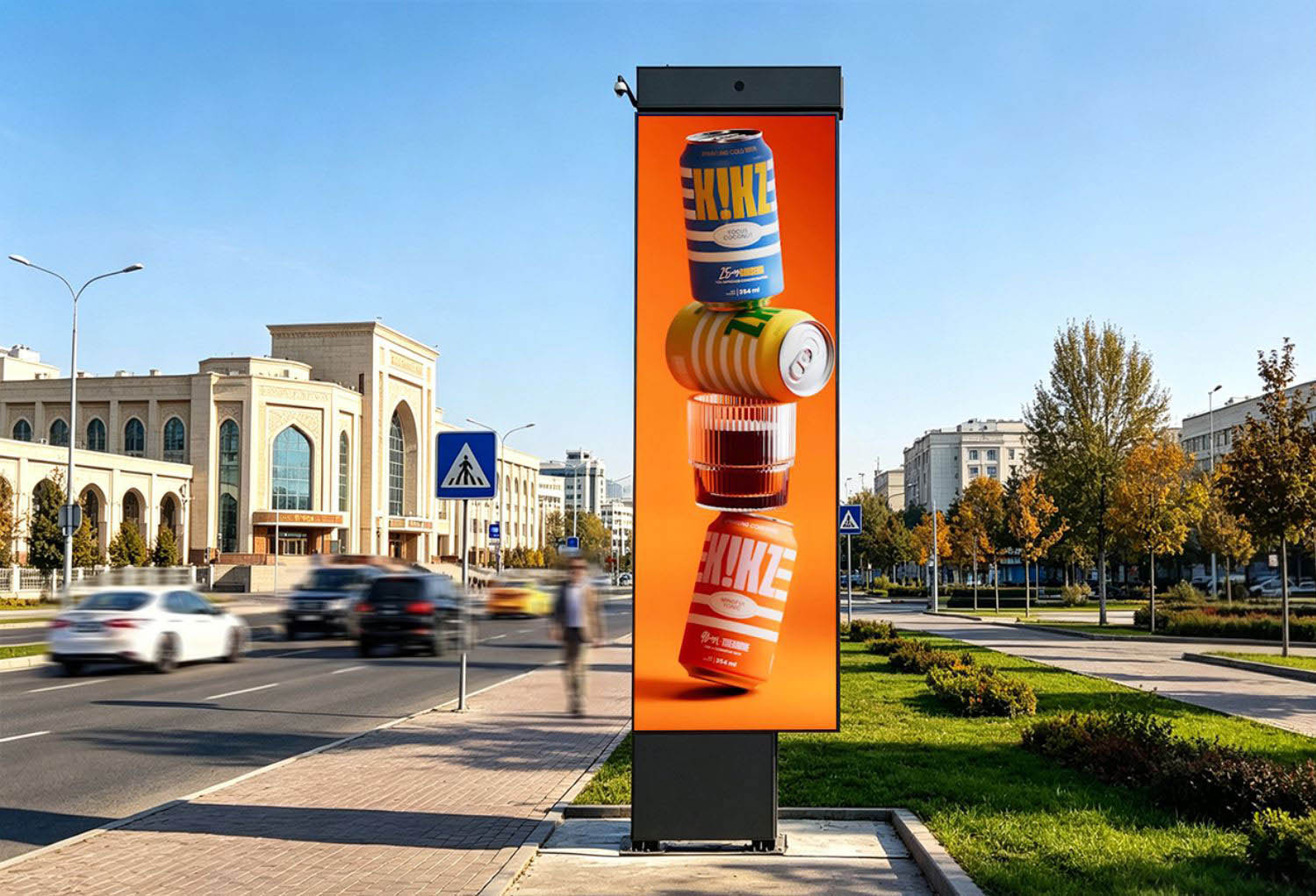

6. Application Scenarios

The P5 Outdoor LED Billboard solution is suitable for a wide range of urban outdoor media applications, including:

• Urban roadside DOOH advertising

• Commercial district and city-center advertising

• Large-format outdoor brand promotion

• Public information broadcasting

• City cultural and tourism promotion

• Festivals and large-scale event content

7. Why Choose CNLC?

① Outdoor LED Display Manufacturing Experience

CNLC specializes in outdoor LED and LCD display manufacturing, providing OEM/ODM solutions for commercial display projects worldwide.

Based on different climates, installation environments, and application requirements, CNLC can customize display brightness, protection, structure, and system configurations.

② Flexible OEM/ODM Engineering Capability

From display dimensions and cabinet structures to installation methods, brightness requirements, and outdoor protection, CNLC supports customized engineering based on specific project requirements.

For large-scale DOOH deployments, standardized product designs can be developed to meet different installation locations while maintaining consistent appearance and performance.

③ Mass Production and Quality Consistency

For multi-unit projects, CNLC applies standardized manufacturing processes, batch testing, and unified calibration to maintain consistency across different production batches and installation locations.

This approach helps ensure consistent structural quality, display performance, brightness, and color reproduction across the complete outdoor LED display network.

④ Designed for Long-Term Commercial Operation

CNLC outdoor LED display solutions are designed not only for visual performance but also for long-term reliability, environmental adaptability, and maintenance convenience.

By combining high brightness, outdoor protection, optimized structural design, and reliable components, CNLC provides stable hardware solutions for customers operating long-term DOOH advertising networks.

8. Project Summary

This 30-unit P5 Outdoor LED Billboard project in Asia demonstrates CNLC's capabilities in customized engineering, mass production, quality control, and project delivery for large-scale outdoor DOOH applications.

The solution combines:

• 7000cd/㎡ high brightness

• ≥7680Hz refresh rate

• P5 SMD LED modules

• Kinglight CS2 LED chips

• High-strength aluminum alloy structure

• IP65 outdoor protection

• Dual-layer sun visor design

• Customized floor-standing installation

Together, these features provide stable display performance in challenging outdoor environments with strong sunlight, rainfall, heat, and humidity.

The solution is suitable for commercial advertising, urban promotion, public information broadcasting, cultural and tourism communication, and other large-format outdoor digital signage applications.

With established outdoor display manufacturing capabilities, flexible OEM/ODM engineering, and experience in batch project delivery, CNLC provides customized Outdoor LED Billboard, DOOH Digital Signage, and outdoor LED display solutions for global commercial display projects.
