Outdoor LCD Air-Conditioned Digital Signage for Airports with Wayfinding Glass

Outdoor LCD Air-Conditioned Digital Signage
Outdoor LCD Air-Conditioned Digital Signage
Outdoor LCD Air-Conditioned Digital Signage
Outdoor LCD Air-Conditioned Digital Signage
Outdoor LCD Air-Conditioned Digital Signage
Outdoor LCD Air-Conditioned Digital Signage
Outdoor LCD Air-Conditioned Digital Signage

Outdoor LCD Air-Conditioned Digital Signage for Airports with Wayfinding Glass

Engineered for high-temperature regions and demanding outdoor environments, this premium LCD totem features integrated air-conditioning, an IP66-rated enclosure, and high-brightness optical-bonded display for superior visibility under direct sunlight. The customizable silk-screen glass provides wayfinding and branding options, making it ideal for airports, transportation hubs, and smart city projects. Its reinforced aluminum structure with wind-load certified stability ensures reliable 24/7 performance in any climate.

  • Artículo No :

    CNLC-320-75

  • Tamaño :

    Customize

  • Brillo :

    4000 cd/m²

  • relación de resolución :

    2k / 4k

  • Material :

    Aluminum Structure

  • Color :

    Black / Silver / Grey / Customize

  • Grado impermeable :

    IP66
Pregunte ahora
Air-conditioned outdoor LCD totem for airport terminal

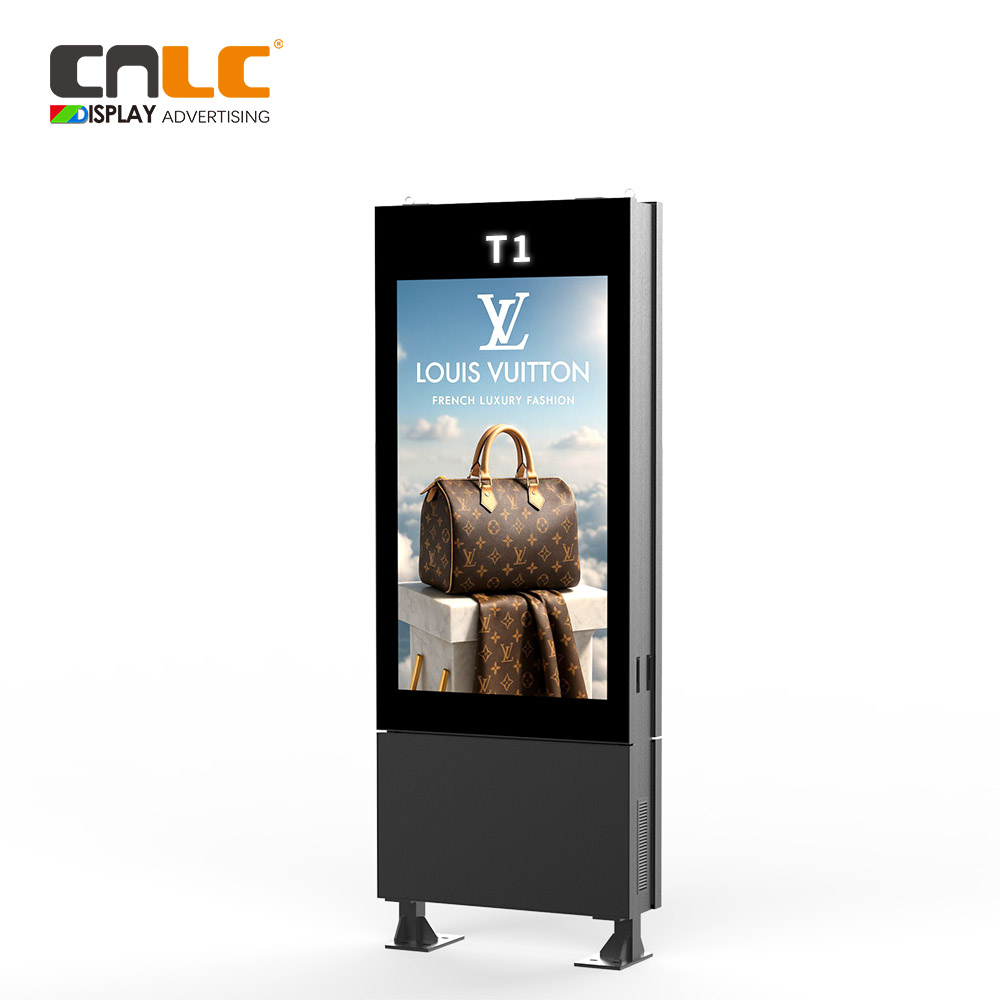

Custom Silk-Screen Glass for Airport Wayfinding and Branding

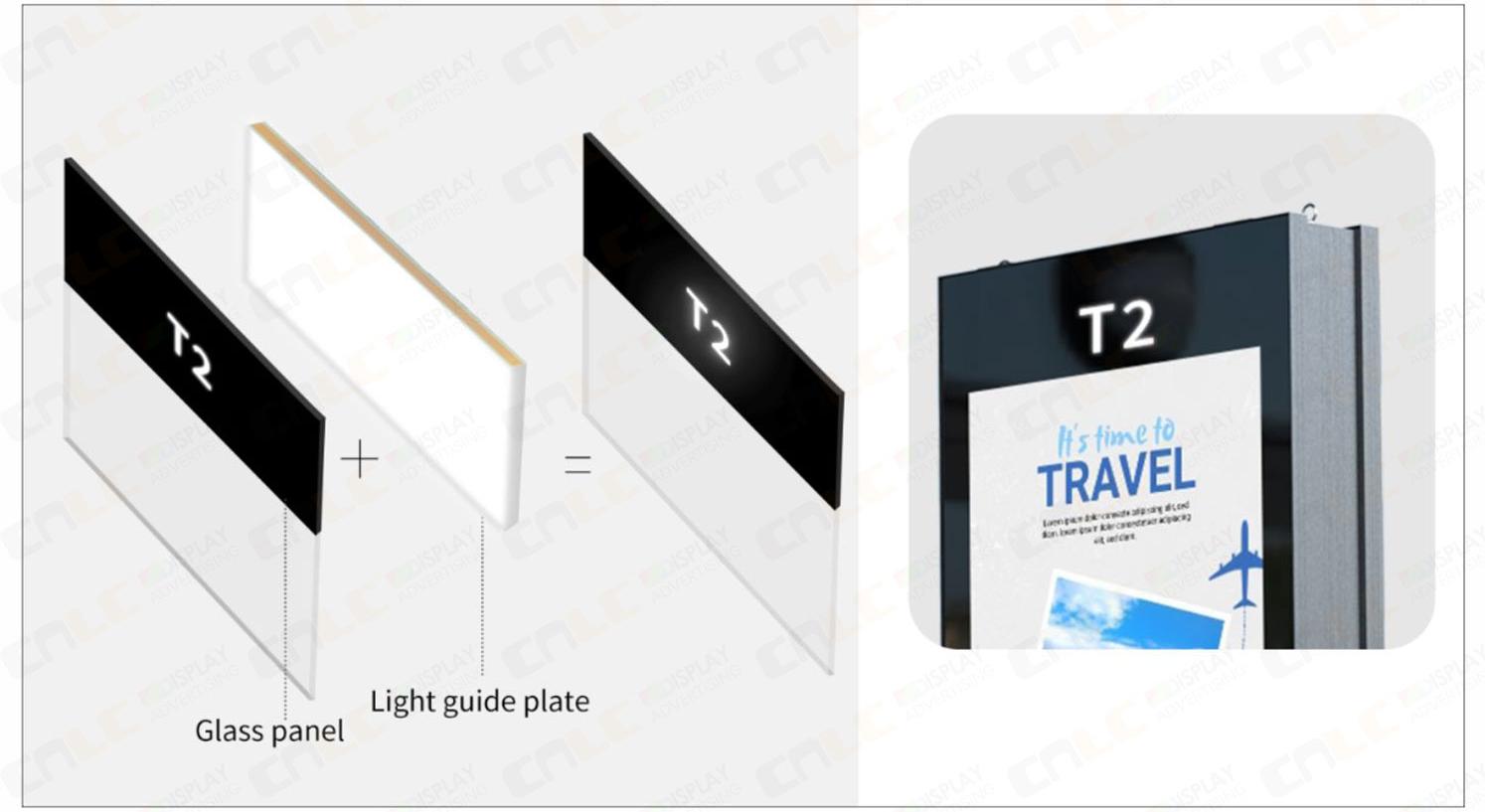

The upper tempered glass panel can be silk-screen printed with terminal identifiers like “T1” or “T2,” offering a practical wayfinding solution for airports and transportation hubs. This customizable design enhances both aesthetics and functionality, combining signage and advertising in one solution.

Outdoor wayfinding display with silk-screen glass
Premium Aluminum Alloy Structure with Optimized Cooling

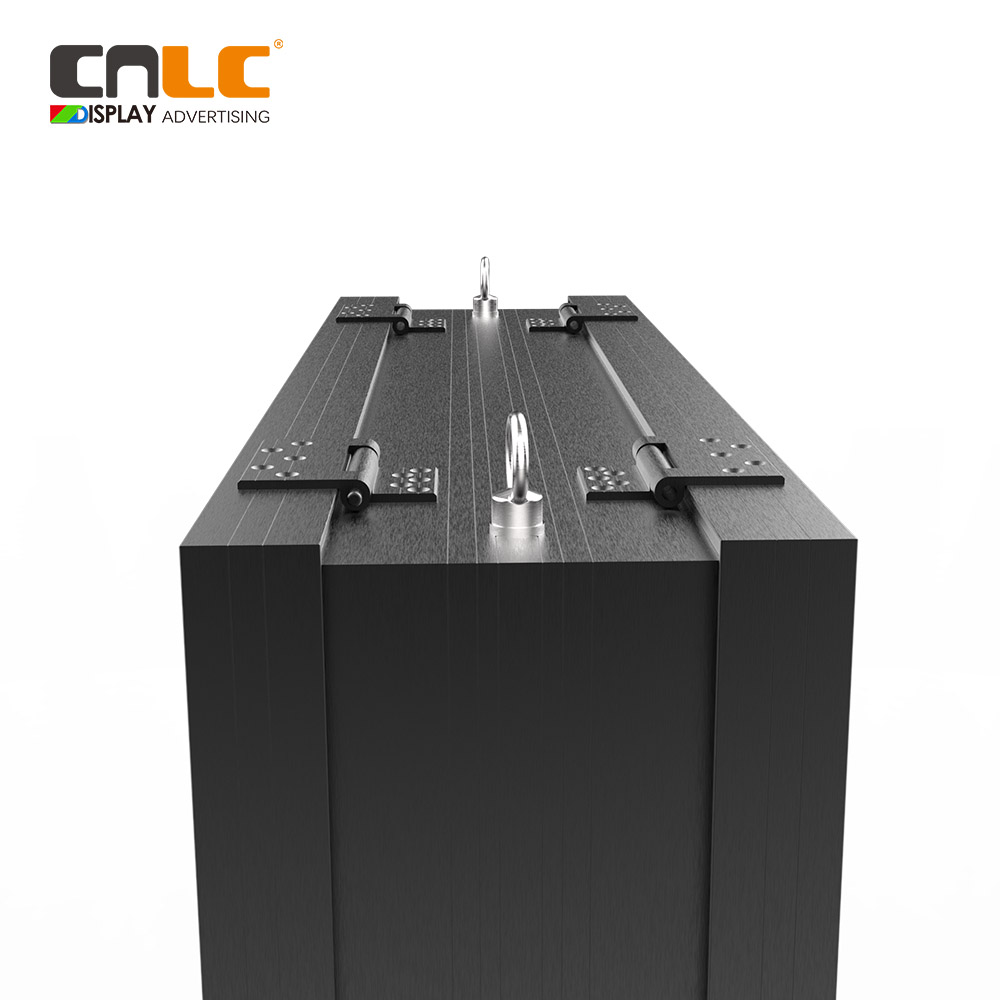

CNLC’s outdoor LCD totem features a precision-molded aluminum alloy enclosure that is lightweight, durable, and highly resistant to corrosion and oxidation. The aluminum frame not only ensures long-term reliability in harsh outdoor environments but also aids heat dissipation. Combined with the integrated air-conditioning system and filtered airflow, the internal components remain dust-free and temperature-controlled, providing stable, year-round operation even in high-temperature or coastal conditions.

Efficient Cooling System for Outdoor LCD Digital Signage

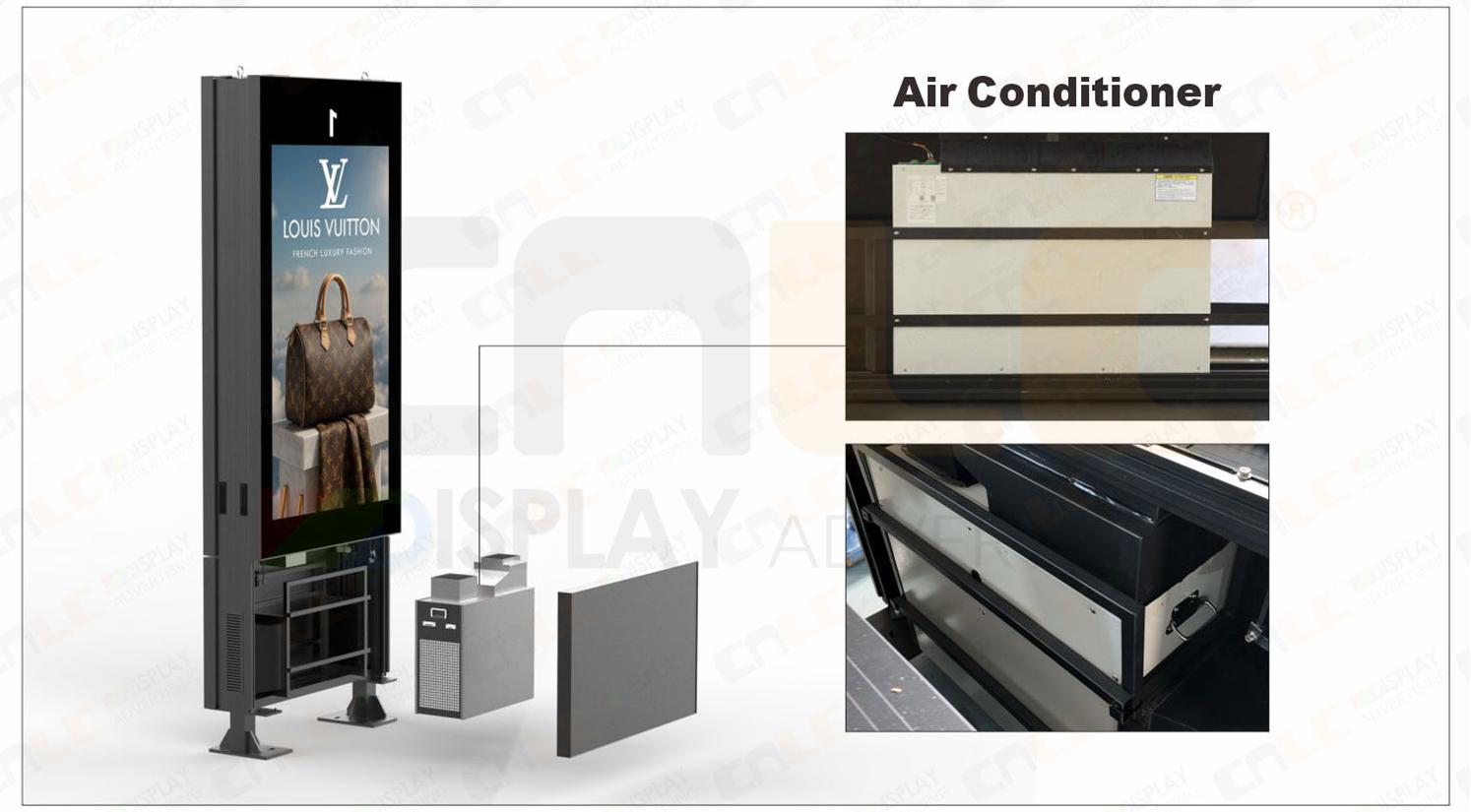

Advanced Cooling with Built-in Air Conditioning

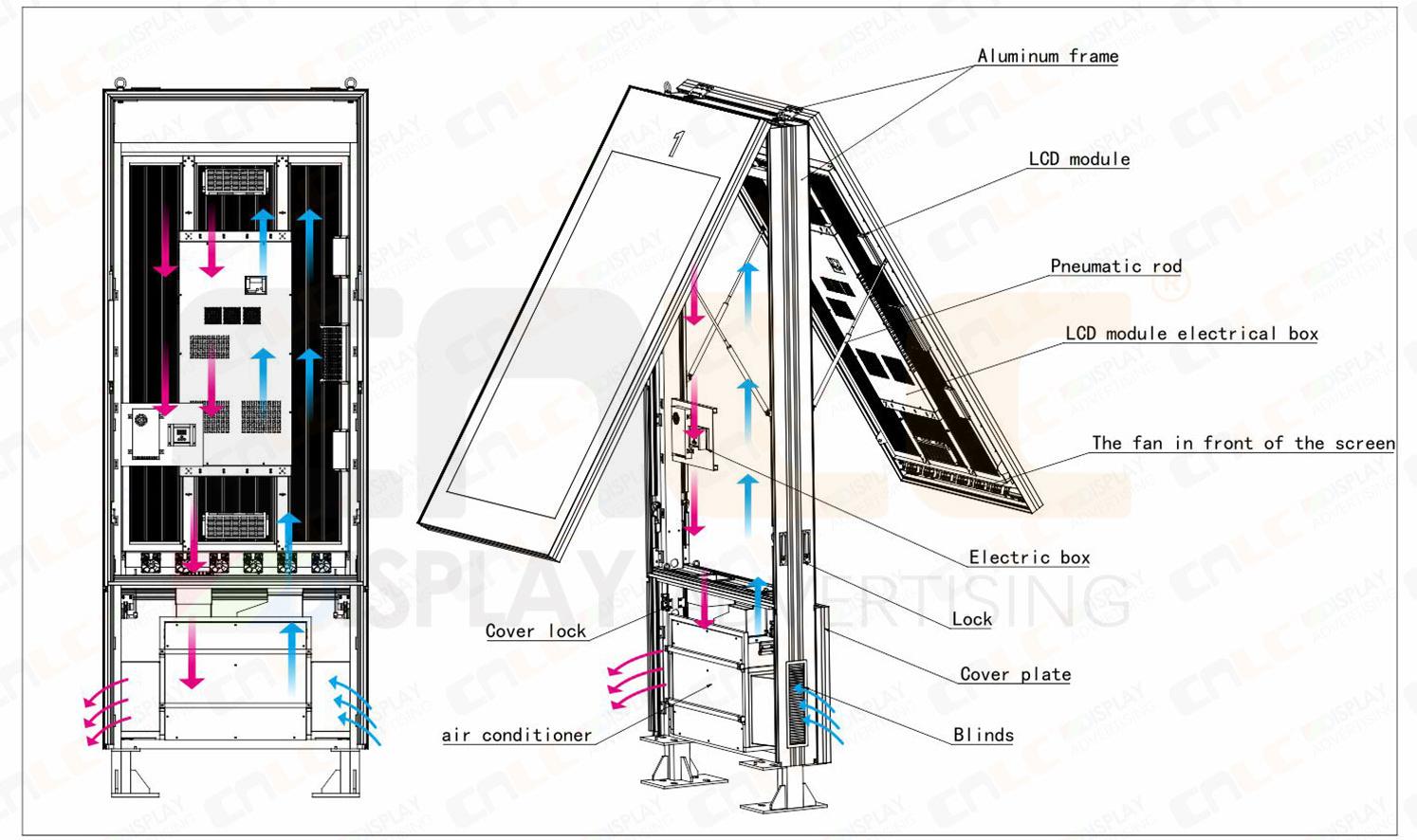

This outdoor LCD totem is equipped with a professional-grade air-conditioning system for precise thermal regulation, ensuring consistent performance in regions with extreme temperatures, such as the Middle East and tropical countries. The system prevents overheating, prolonging display lifespan and guaranteeing 24/7 operation in demanding outdoor environments.

Outdoor LCD totem with built-in air conditioning for extreme heat environments.

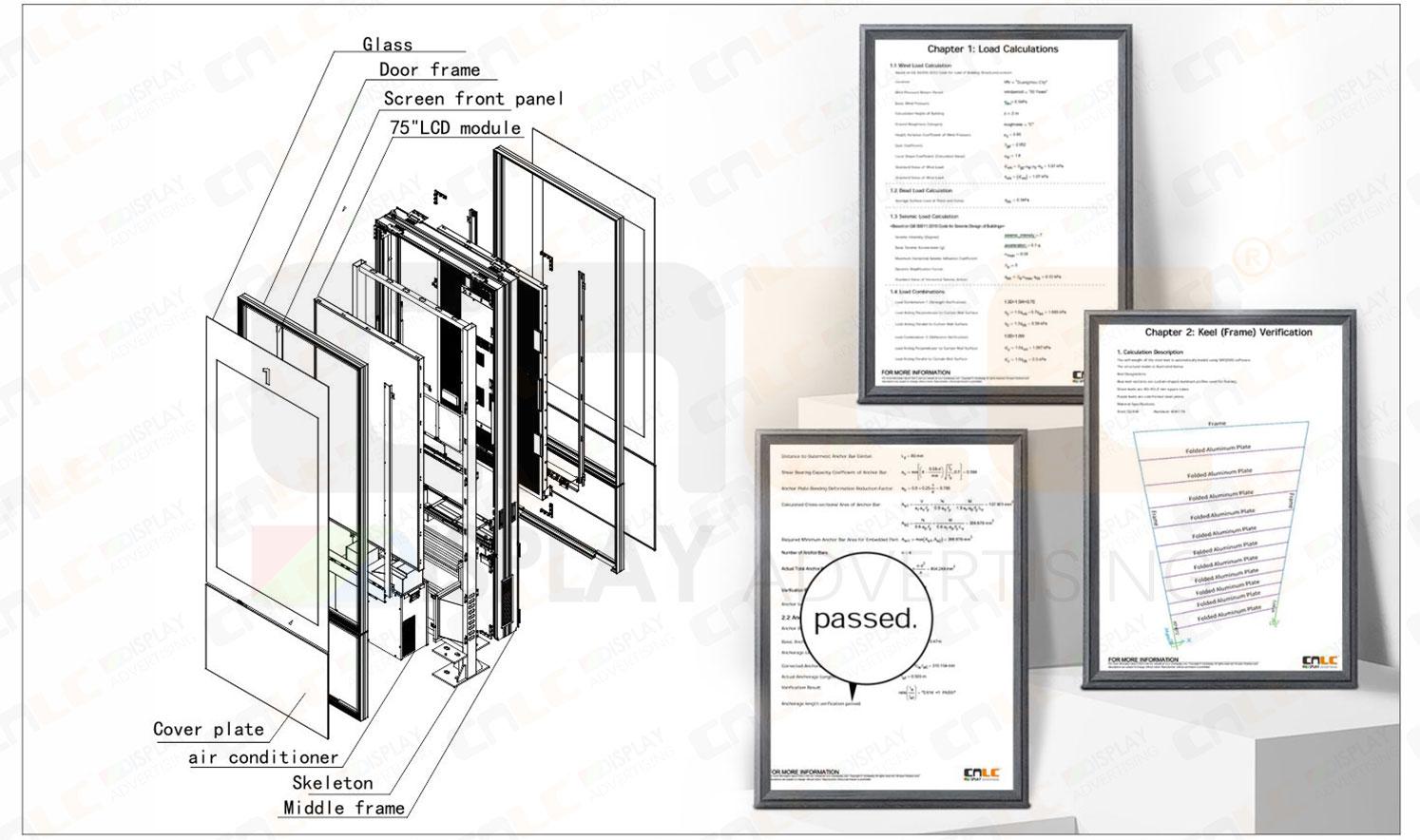

Structural Framework Excellence & Precision Engineering

CNLC’s outdoor LCD totem is built on a meticulously designed structural framework that prioritizes durability and performance in challenging conditions. The reinforced skeleton integrates strategic load-bearing elements and modular assembly points, delivering maximum stability against wind and vibration while simplifying installation and maintenance. All designs are validated through professional wind-load calculation reports, ensuring that each totem meets rigorous structural standards. This robust yet lightweight design exemplifies CNLC’s engineering capability to merge strength, longevity, and functional elegance for critical applications such as airports and transportation hubs.

Reinforced structural framework for outdoor LCD totem display.

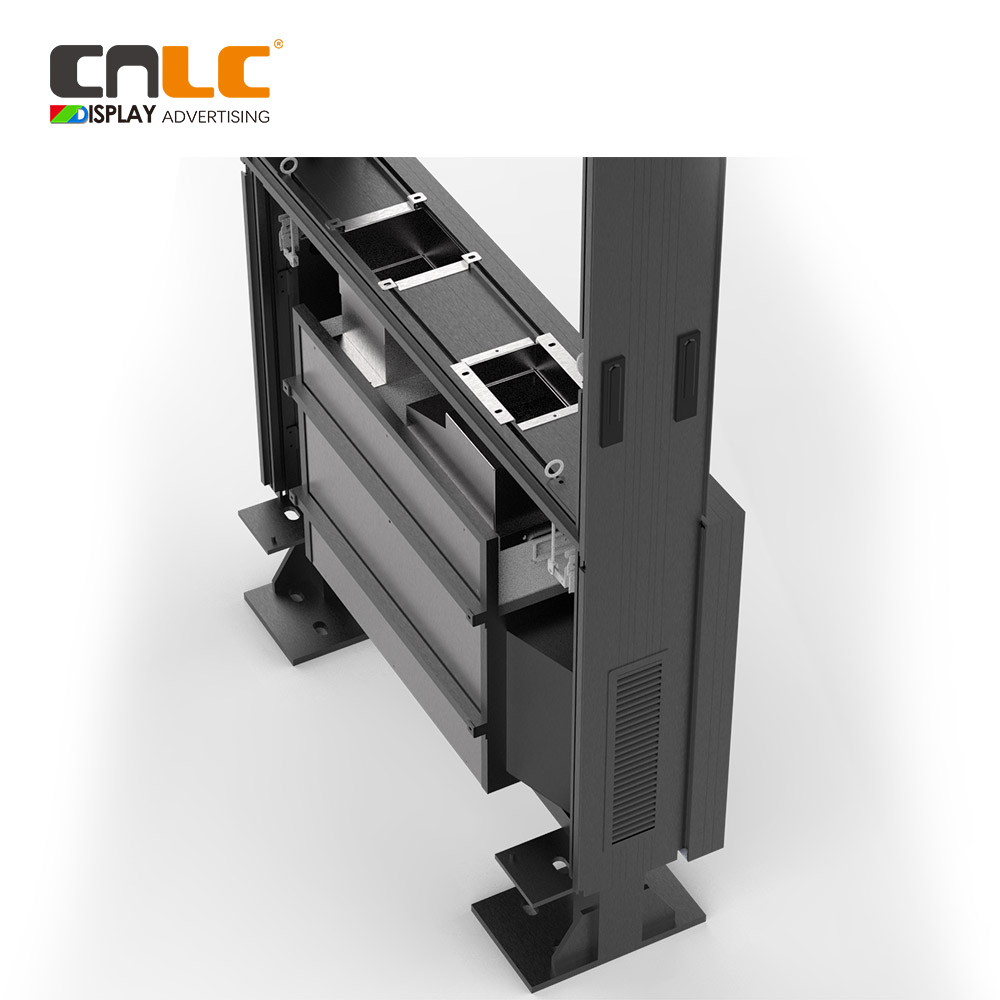

Reinforced Structural Base for Maximum Stability

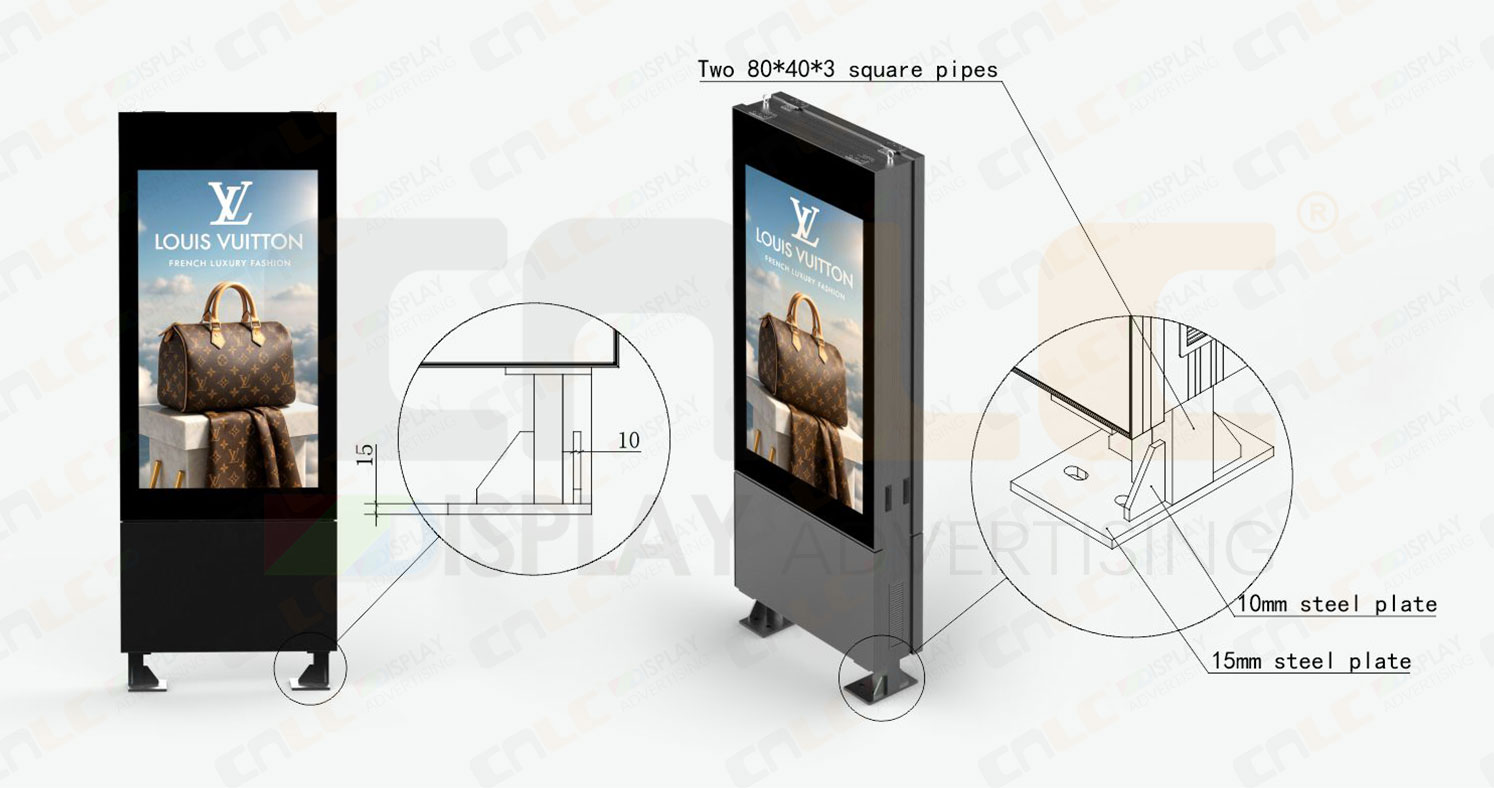

Built for long-term deployment, the bottom section of the outdoor LCD totem is reinforced with two 80×40×3 mm square pipes, a 10 mm steel plate, and a 15 mm steel plate, providing outstanding stability and wind resistance even in open-air environments such as airports.


Reinforced steel base for outdoor LCD totem, ensuring stability and wind resistance.

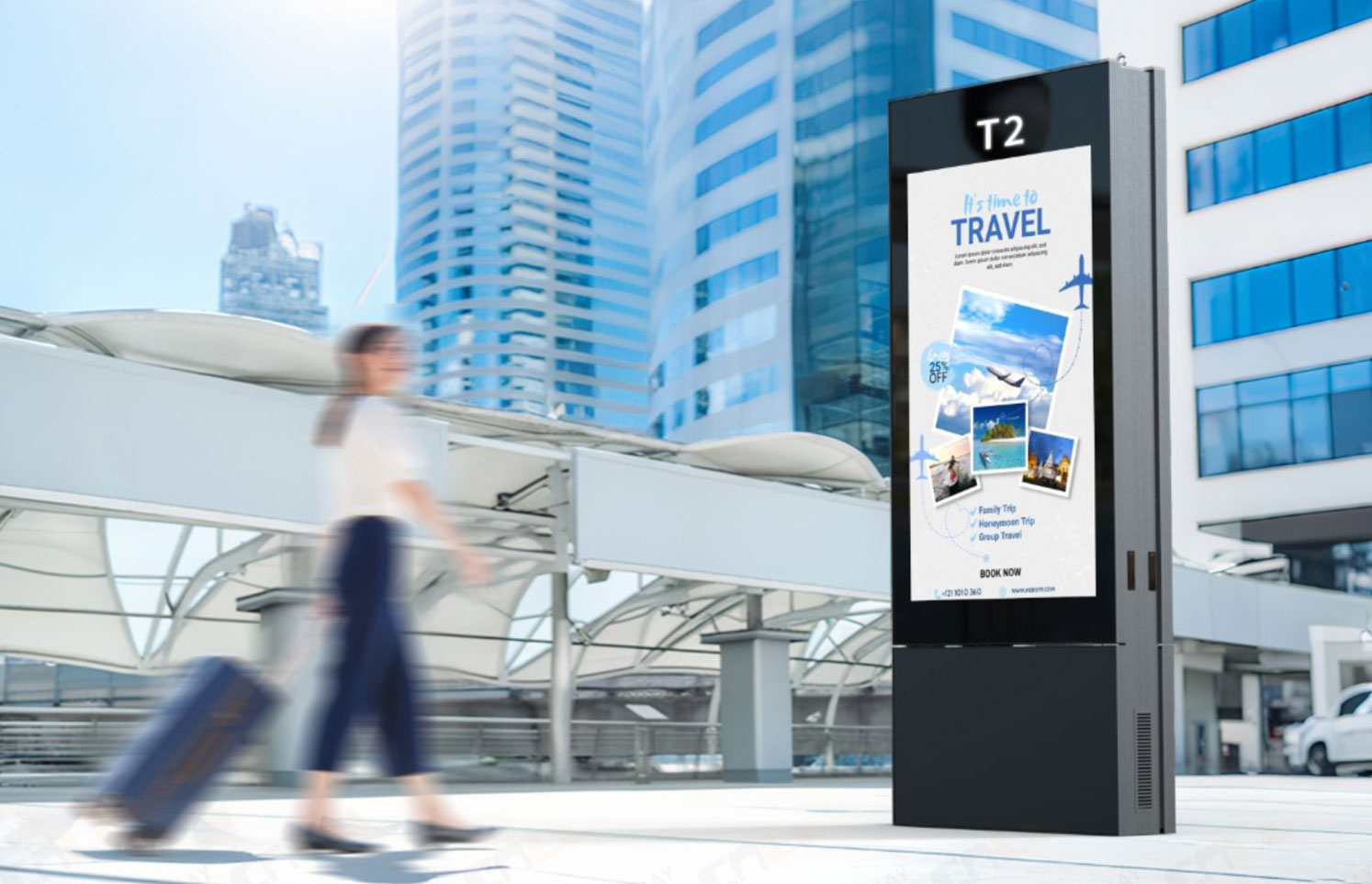

High Brightness LCD with Anti-Reflective Glass

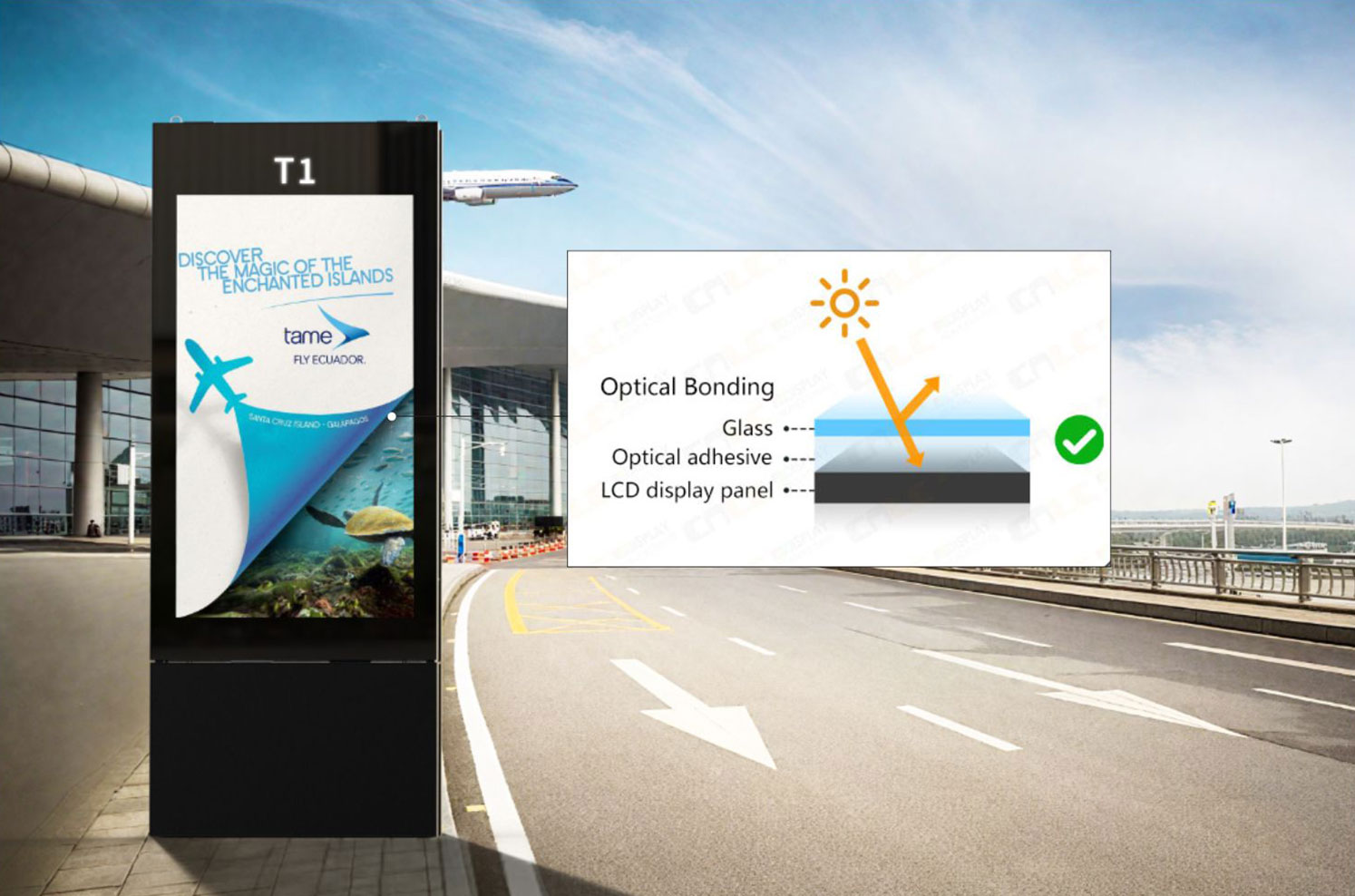

With up to 4000 nits brightness and optical bonding, this outdoor display guarantees clear, vivid content even under direct sunlight. Anti-reflective coating reduces glare, delivering optimal viewing performance in bright outdoor conditions.

High brightness outdoor LCD totem with anti-reflective glass.

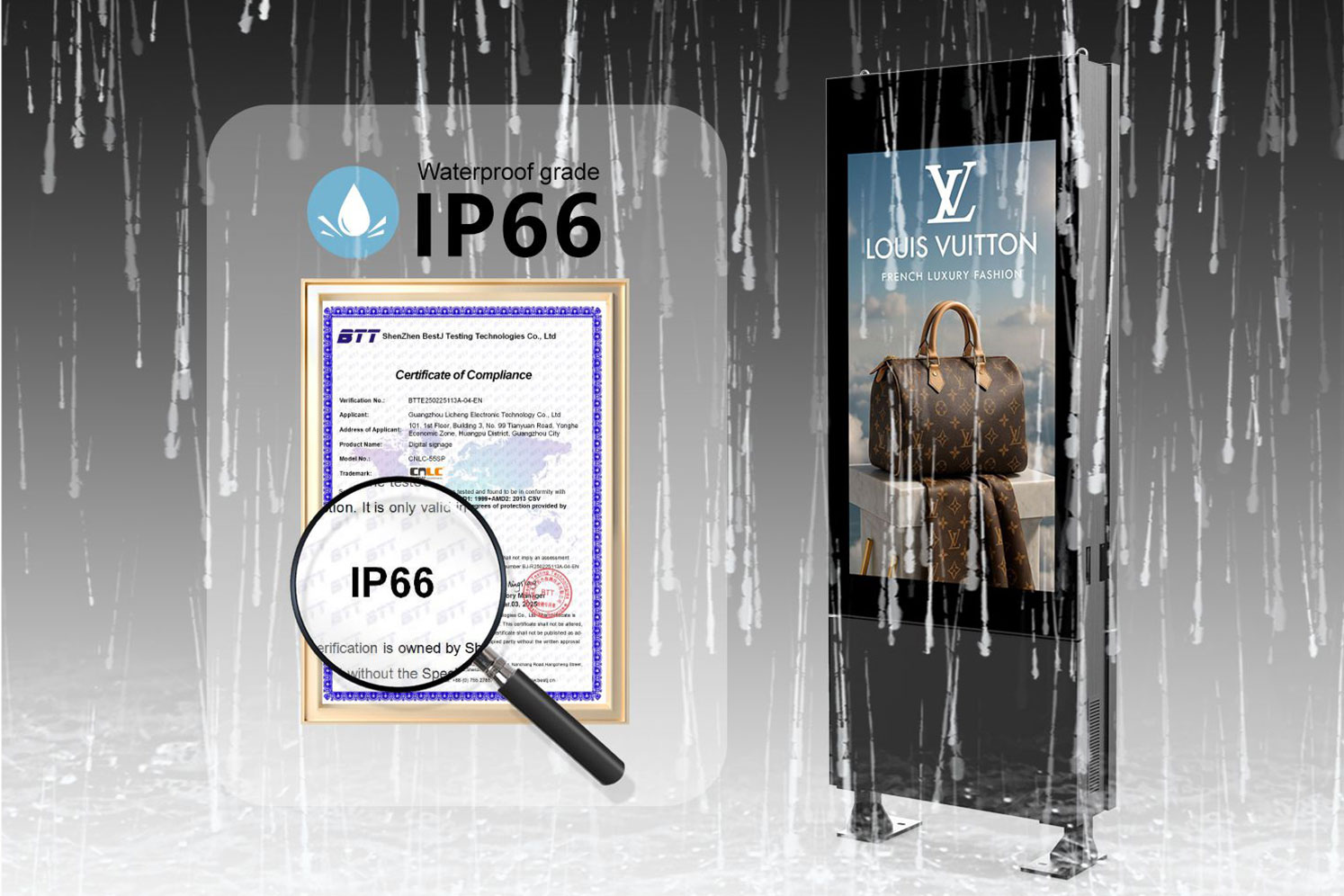

IP66-Rated Weatherproof Protection for Outdoor Durability

This outdoor LCD totem features an IP66-rated enclosure, providing superior protection against heavy rain, humidity, and environmental elements. The integrated air-conditioning system actively filters the intake air, ensuring that no dust enters the enclosure from the top panel. This design guarantees a clean internal environment while maintaining precise thermal control, enabling reliable, year-round operation in high-moisture, coastal, or desert climates without compromising display performance or component longevity.

IP66 weatherproof outdoor LCD totem for all-weather durability.

Project Cases

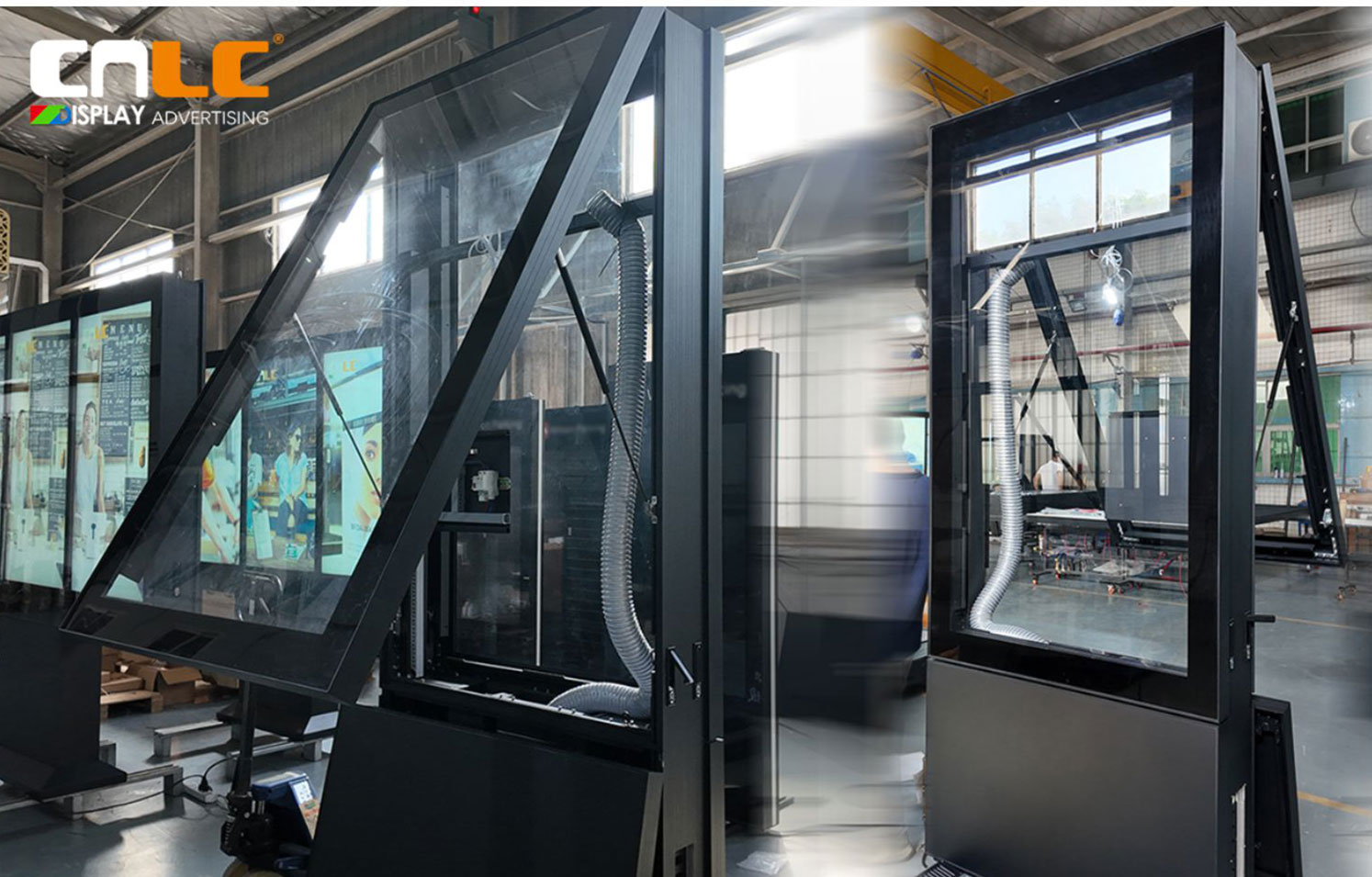

Outdoor LCD air-conditioned totem display in production at factory

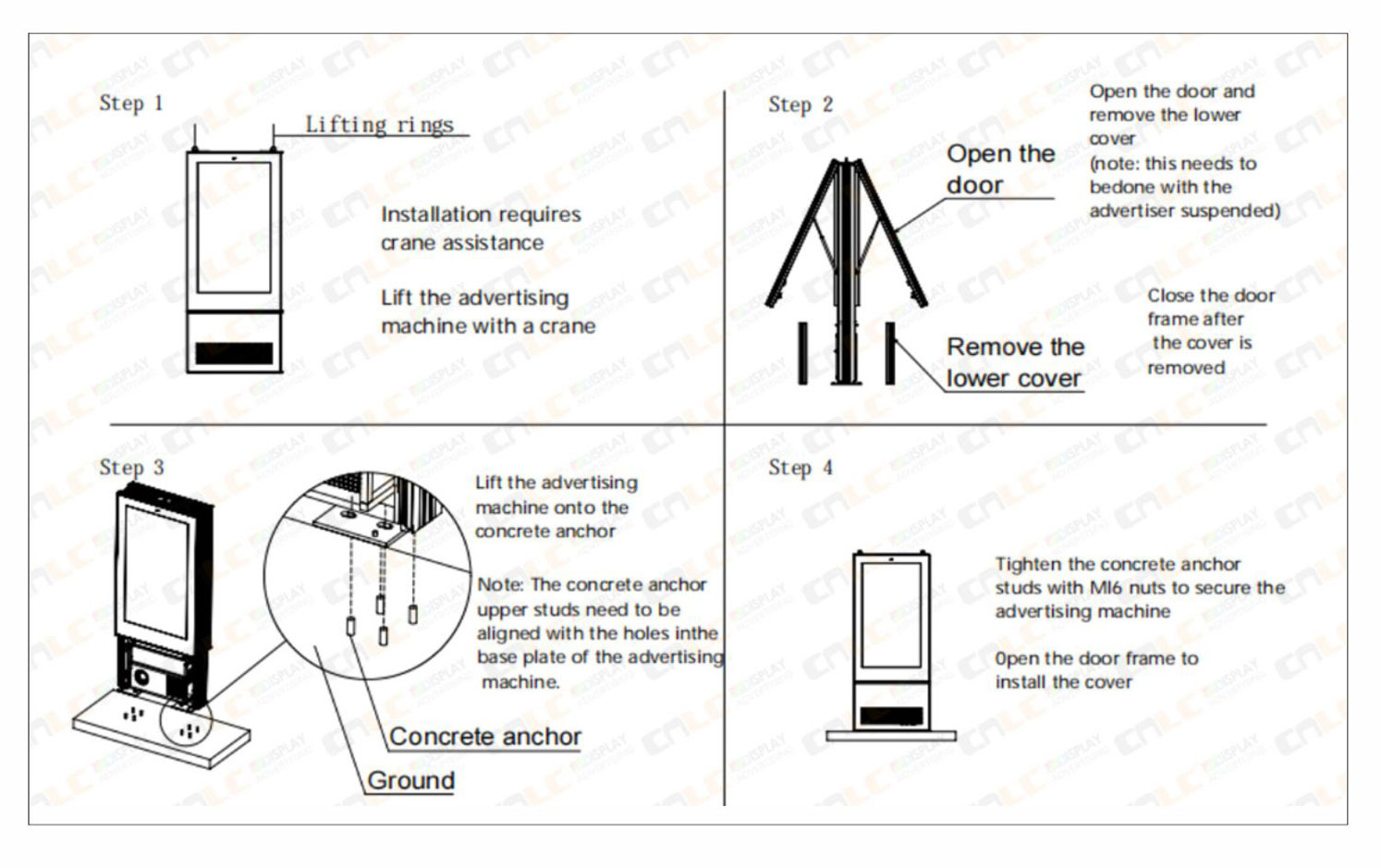

Embedded base for outdoor LCD totem
TECHNICAL SPECIFICATIONS

LCD Panel  55”
 65”
 75”
 86”
Display size(mm)
 680*1210
 805*1430
 930*1650
 1065*1895
Overall Size(mm)
 880*2180*320
 1005*2400*320
 1190*2520*320
 1265*2765*320
Resolution 1920*1080 / 3840*2160
Brightness(nits) 4000
Contrast Ratio 1200:1
Input interface Input interface
Smart Temp Control Yes
Cooling System
 Built-in Air Conditioning with Filtered Airflow
Material of Enclosure Aluminum
Thickness of Tempered Glass
 6mm Vandal-Resistant Glass
Tempered Glass Transmittance
 84%
IP Rating IP66
Withstand Temperature Level -30° +50°
Operating system
 windows / Android(optional)
Running Time 7/24
Luminous LOGO
 Support
Multiple bases are available
 5 base options
Rated Voltage
 110V / 220V(optional)
Certificates IP66、IK10、CE、RoHS
